SPY555-actin is a bright & non toxic live and fixed cells F-actin stain based on our SPYTM dyes series. Its optimized structure allows quick labeling of F-actin in live & fixed cells with high specificity and very low background. SPY555-actin stains F-actin of live or fixed cells without the need for genetic manipulation or overexpression of fluorescent proteins. Its absorbance and emission are similar to tetramethylrhodamine (TMR). SPY555-actin enables multicolor imaging with SPY505, SPY595, SPY650, SPY700, SiR & GFP. SPY555-actin can be imaged with standard TMR or Cy3 filtersets. It can be used for widefield, confocal, SIM or STED imaging in living or fixed cells and tissue. Contains 1 vial of SPY555-actin (lyophilized).
Absorbance maximum λabs
Fluorescence maximum λfl
Works on fixed cells?
yes, PFA fixed cells
STED depletion wavelength
660 or 775 nm

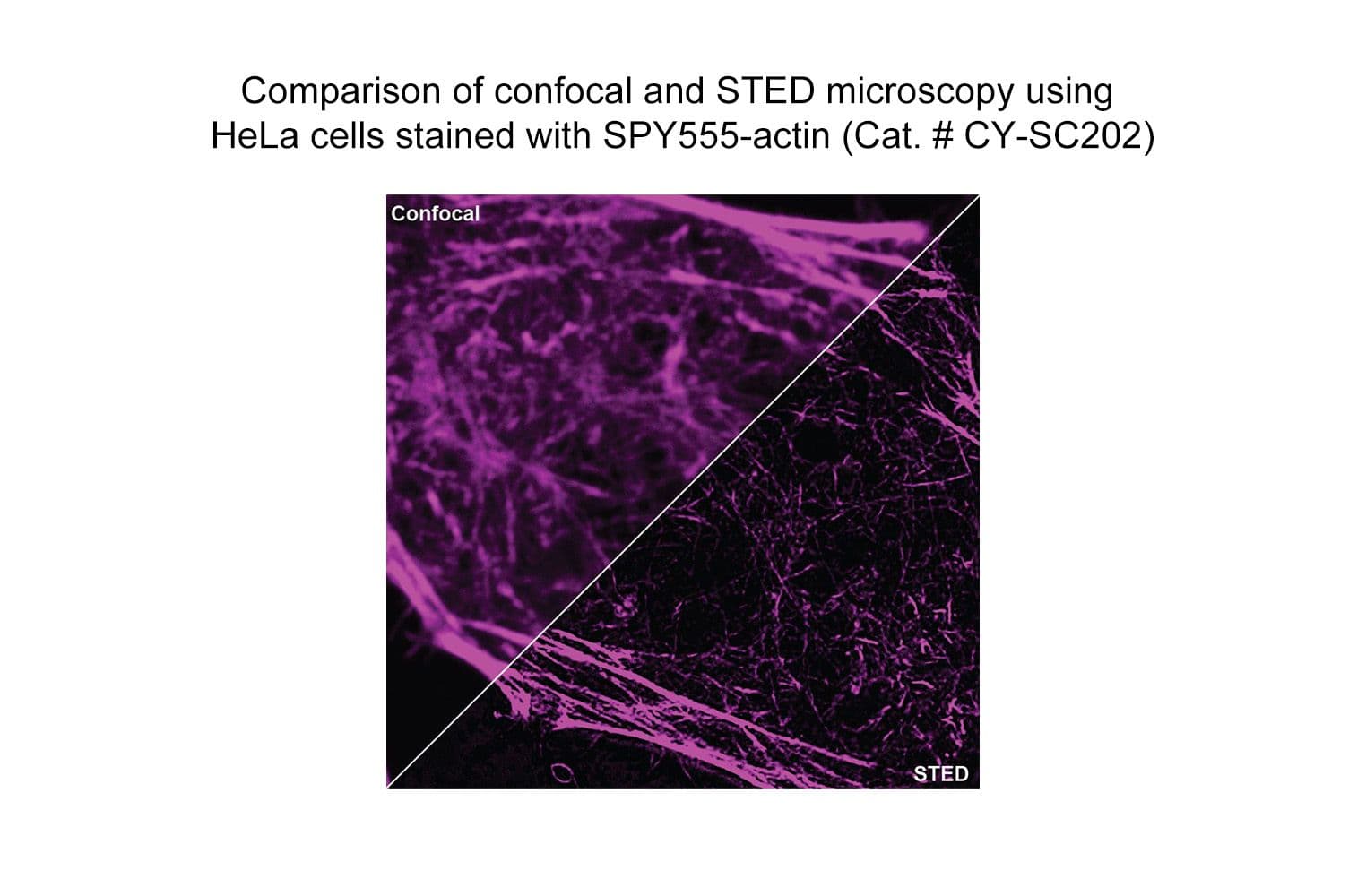

Comparison of SPY-labeled HeLa cells imaged with confocal vs. STED microscopy. Imaged with 93X objective and provided courtesy of Spirochrome.
Taninaka, A. et al. Direct analysis of the actin-filament formation effect in photodynamic therapy DOI: 10.1039/D1RA09291J (2022)
Perez, J.E., Fage, F., Pereira, D. et al. Transient cell stiffening triggered by magnetic nanoparticle exposure. J Nanobiotechnol 19, 117 (2021). https://doi.org/10.1186/s12951-021-00790-y
Schnauß J.et al. (2021) Cells in Slow Motion: Apparent Undercooling Increases Glassy Behavior at Physiological Temperatures. Adv. Mater. 2021, 2101840. https://doi.org/10.1002/adma.202101840
“Fluorogenic probes for live-cell imaging of the cytoskeleton”; G. Lukinavičius, L.Reymond, E. D’Este, A. Masharina, F. Göttfert, H. Ta, A. Güther, M. Fournier, S. Rizzo, H. Waldmann, C. Blaukopf, C. Sommer, D. W. Gerlich, H.-D. Arndt, S. W. Hell & K. Johnsson; Nature Methods 11, 731–733
Q1. What is STED microscopy and how does it work?
A1. STED microscopy stands for Stimulated Emission Depletion microscopy. It is one type of super resolution microscopy which allows the capture of images with a higher resolution than conventional light microscopy which is constrained by diffraction of light. STED uses 2 laser pulses, one is the excitation pulse which excites the fluorophore, causing it to fluoresce. The second pulse, referred to as the STED pulse, de-excites the fluorophore via stimulated emission in an area surrounding a central focal spot that is not de-excited and thus continues to fluoresce. This is accomplished by focusing the STED pulse into a ring shape, a so-called donut, where the center focal spot is devoid of the STED laser pulse, conferring high resolution to the fluorescent area (Fig. 1; see Ref. 1 for more details on STED microscopy).
Figure 1. STED microscopic image of microtubules labeled with SiR-tubulin in human primary dermal fibroblasts.
Q2. Why is the SPY actin (or tubulin/DNA) probe good for STED microscopy?
A2. STED microscopy offers the ability to study cellular details on a nanometermolar scale in vivo. To take advantage of this super resolution microscopy, one must be able to select with high specificity the area to be examined using fluorescent probes. In addition, the fluorescent probes must be bright, photostable, exhibit no or little phototoxicity, be excited and emit in the far red spectrum. In addition, if the probe is to be used for live cell imaging (thus avoiding fixation artifacts that occur when cells are fixed), high cell permeability is necessary. The SPY actin and tubulin probes fulfill all of these requirements. In short, the combination of STED and SiR probes allows for unparalleled fluorescent visualization of subcellular actin and tubulin/microtubule structures and their physical characterization in living cells, (see Fig. 2 and Ref. 2).
Figure 2. STED images of cultured rat hippocampal neurons stained with SiR-actin. Bottom image is a close-up view of part of the top image to clearly visualize actin rings (stripes) with 180 nm periodicity. Courtesy Of Elisa D'Este, MPI Biophysical Chemistry, Göttingen.
Q3: Are the SPY™ probes stable at room temperature?
A3: Yes, the probes are stable at room temperature for a few days. However, it strongly depends on the probe and the solvent. Thus, it is recommended to store all of the probes or solutions at –20°C.
Q4: Are SPY-actin, SPY-DNA and SPY-tubulin toxic to cells?
A4: Yes, above a certain threshold both probes show some effect on cell proliferation and altered actin or microtubule dynamics. However, the probes are orders of magnitude less toxic than their parent drug. In HeLa cells, neither actin nor microtubule dynamics were altered at concentrations below 100 nM. At this concentration, SPY probes efficiently label microtubules and F-actin, allowing for the capture of high signal to noise images.
1. Hell S.W. and Wichmann J. 1994. Breaking the diffraction resolution limit by stimulated emission: stimulated-emission-depletion fluorescence microscopy. Opt. Lett. 19, 780-782.
2. D’Este E. et al. 2015. STED nanoscopy reveals the ubiquity of subcortical cytoskeleton periodicity in living neurons. Cell Rep. 10, 1246-1251.
3. Lukinavicius G. et al. 2013. A near-infrared fluorophore for live-cell super-resolution microscopy of cellular proteins. Nat. Chem. 5, 132-139.
4. Lukinavicius G. et al. 2014. Fluorogenic probes for live-cell imaging of the cytoskeleton.Nature Methods. 11, 731-733.
